Roxor Aux fuse panel Pigtails for Roxpower

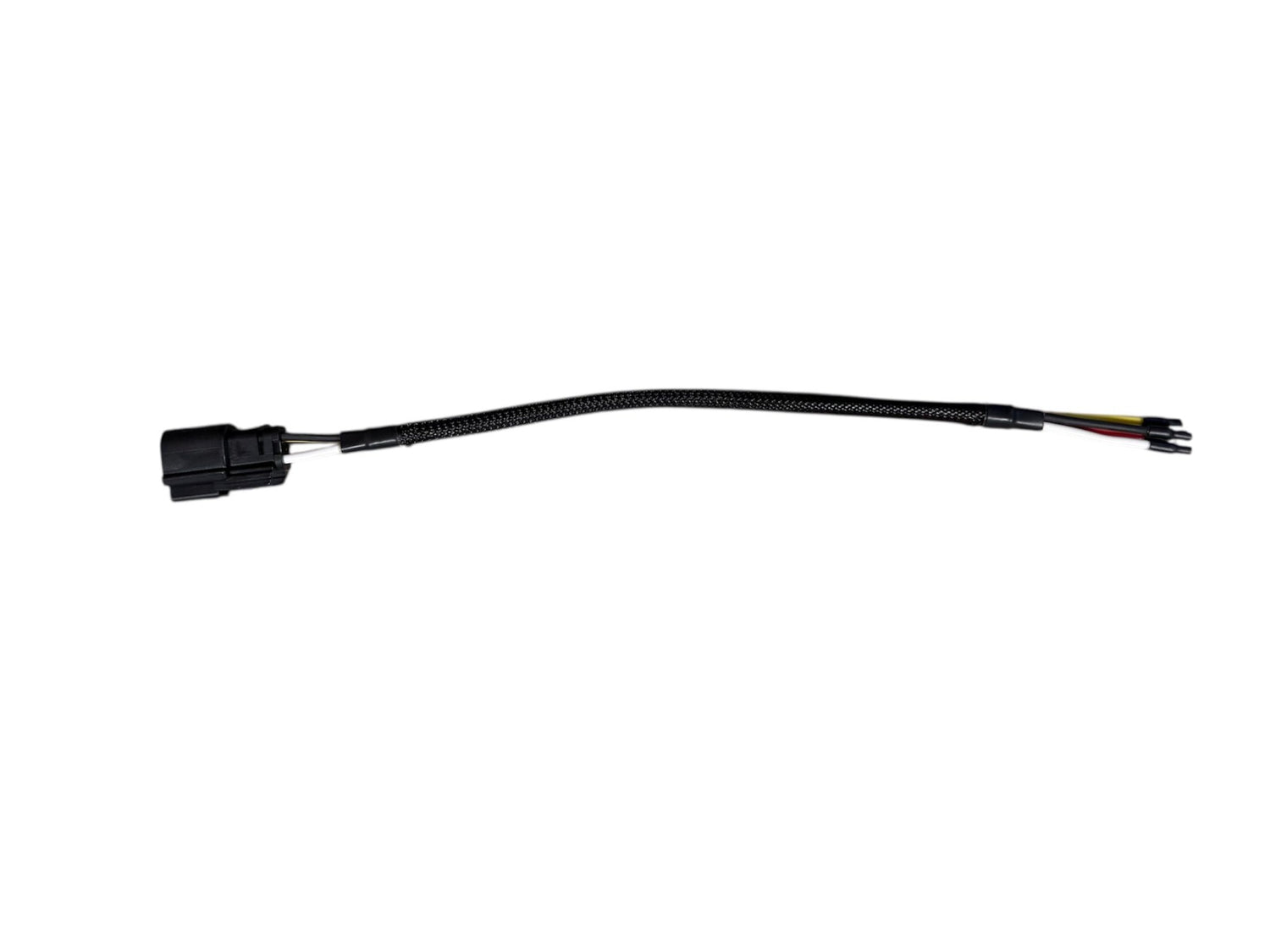

Looking to add accessories to your All Weather Model Roxor?, Use these pigtails for simplified installation.

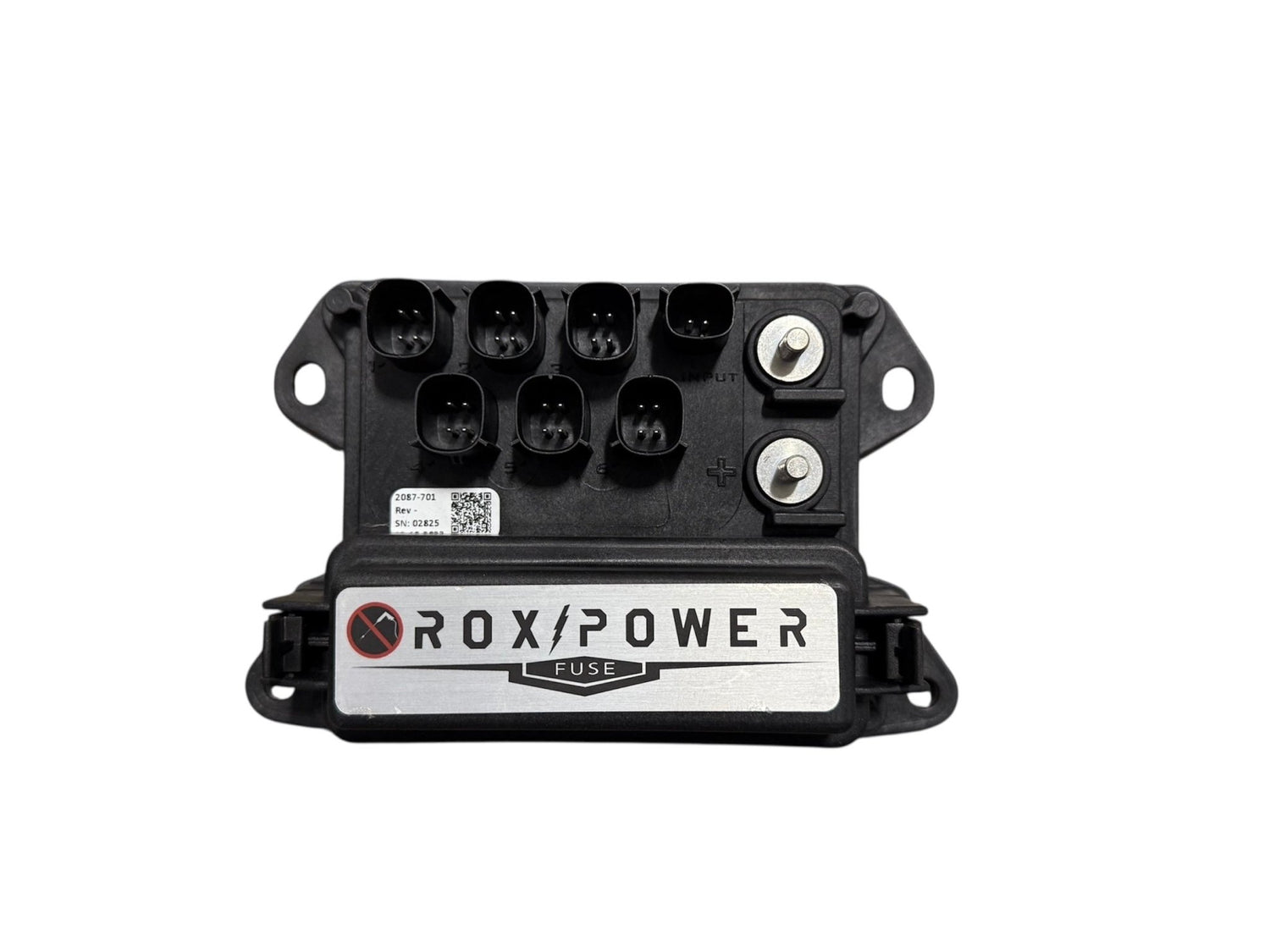

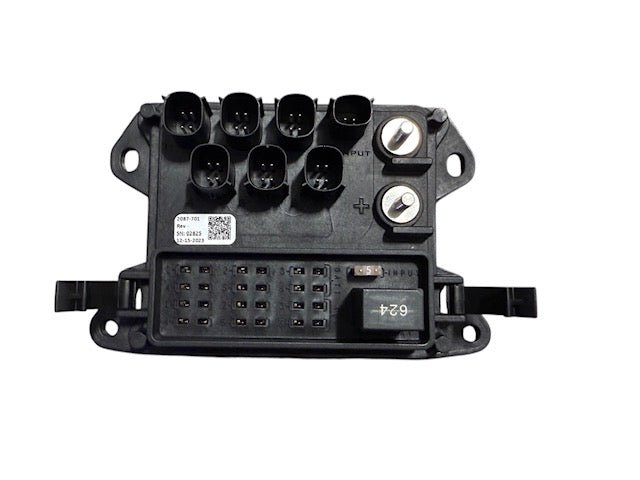

The Factory All Weather models come with an Auxiliary fuse panel called the ROXPOWER and is located down by the clutch pedal under the dash on the inside of the body.

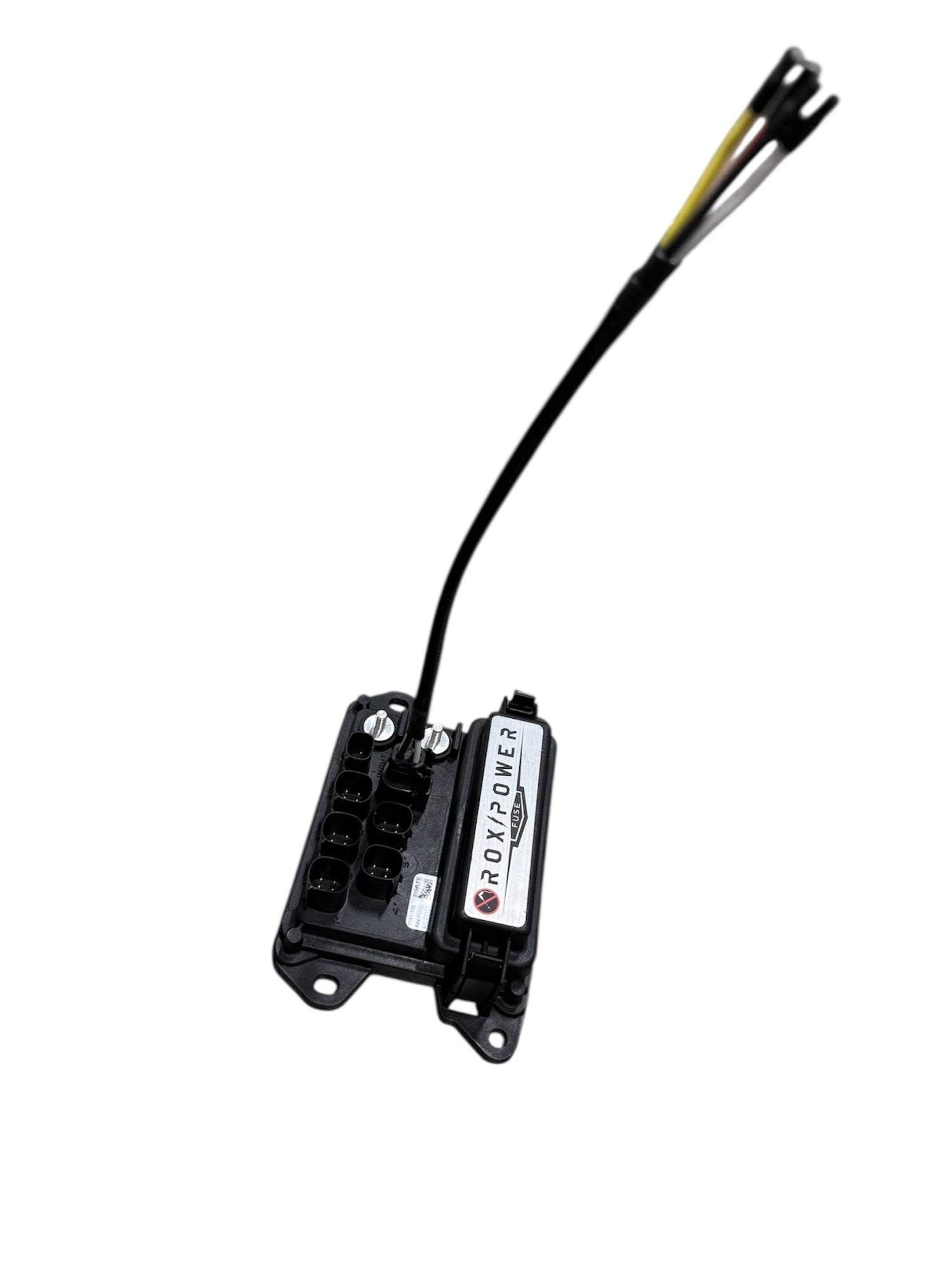

After wiring up your pigtail, Add a mini-fuse to your location desired within the RoxPower for the location you are using and your good to go! (mini-fuses not supplied)

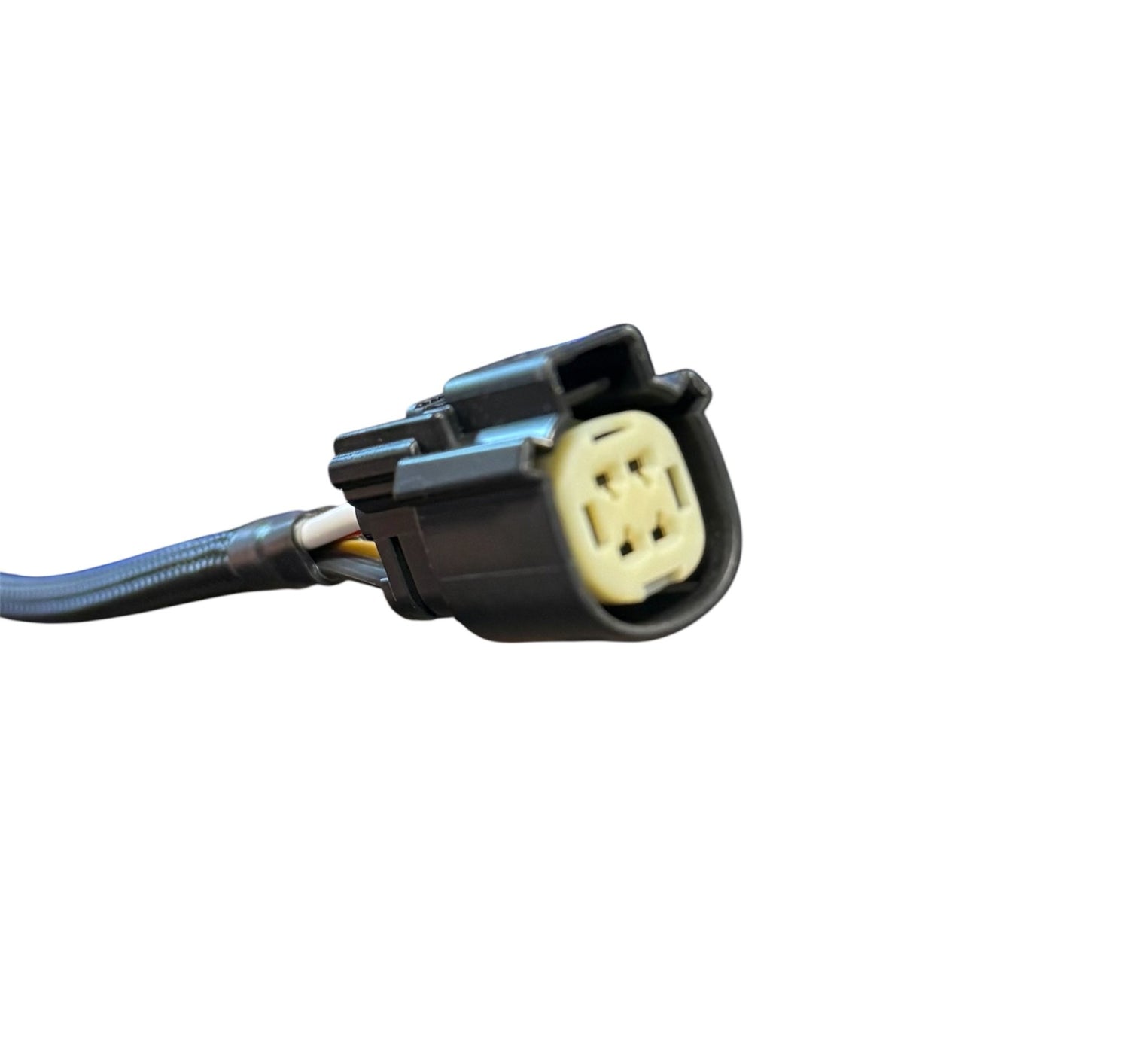

Pin 1 - Red/switch, Pin 2 - White/illumination, Pin 3 - Yellow/Constant, Pin 4 - Black/ground

  RoxPower Not Included

For Base Models, we suggest adding the XTC Aux Fuse Panel:

https://dieselfreak.com/products/roxor-plug-play-keyed-fuse-block-35-amp-6-circuit
